Randy's 50 Ford Woodie Front Suspension

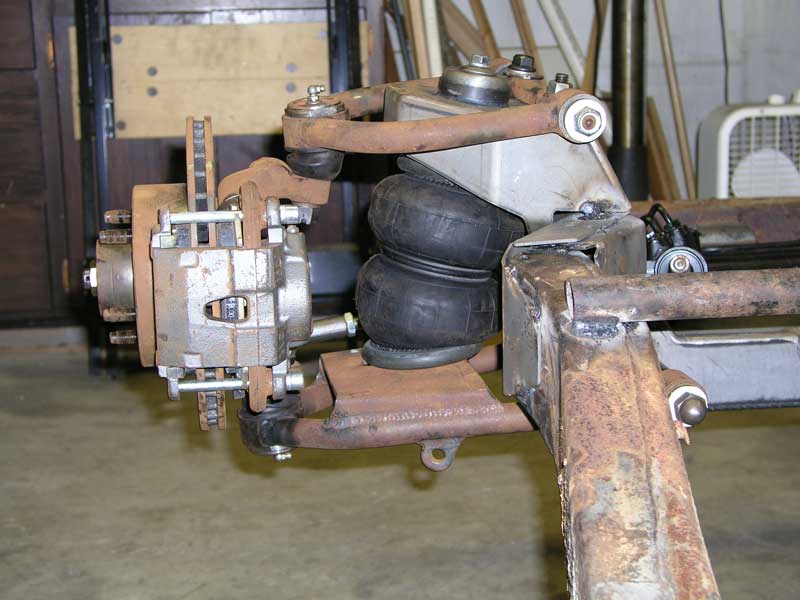

Here's a shot of the DC Metal Fabricators Mustang II and TCI suspension
after some modifications.  Note that the air bags now mount up and look good.


To get to this point I made 2 major modifications to the front end.
I moved the mounting holes for the air bag inward about one inch.
I also tilted the shock tower enough to swing the camber just a little to the
"other" side.

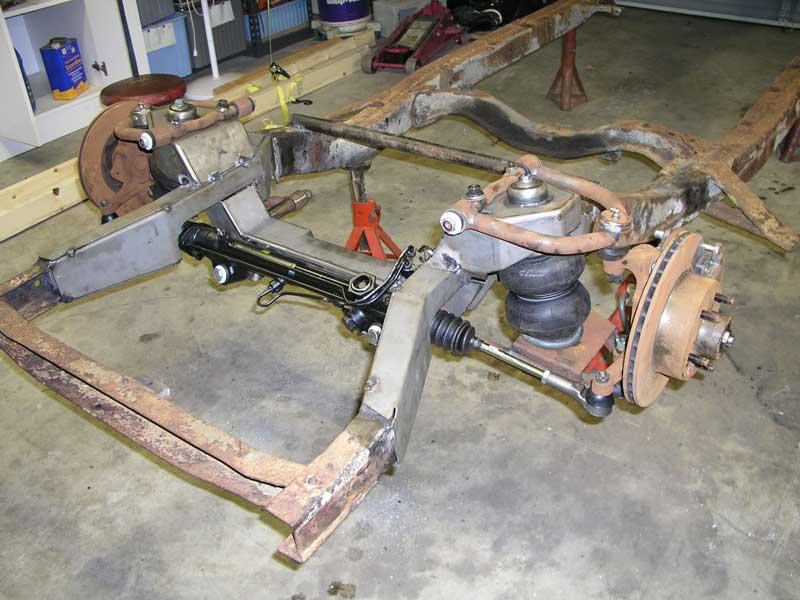

Another view


I made sure that my camber adjustment could go both positive and negative.

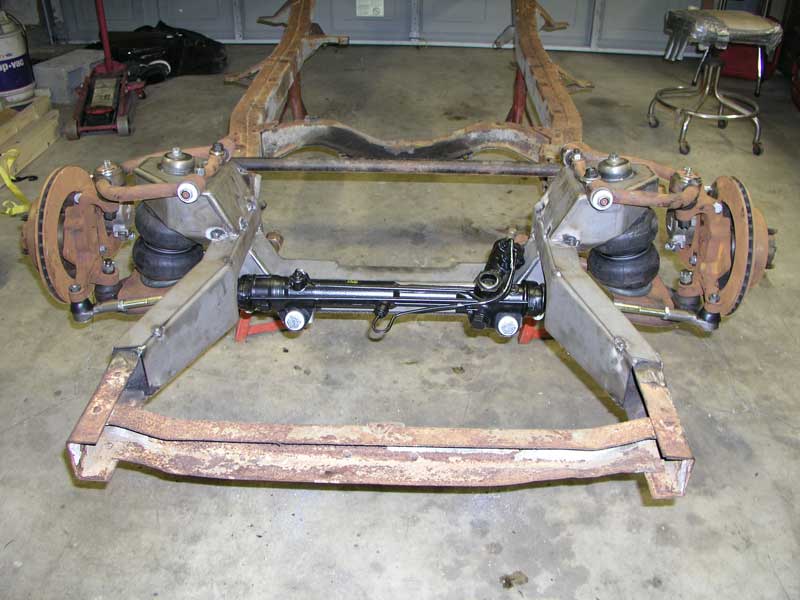

Note the temporary spreader bar welded in to maintain frame dimensions during the work.
